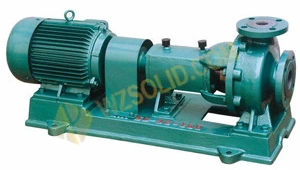

WENZHOU SOLID MECHANICAL EQUIPMENT CO.,LTD provides good quality fluorine plastic lined centrifugal chemical pump.
IHF single stage end suction fluorine plastic lining centrifugal pump is with disposable sintering. The casing is metal lined with FEP, PVDF, PTFE etc. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic. Pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life.
| Working principle: | Centrifugal, end suction |
| Pump shell material: | Cast iron |
| Wet parts and impeller material: | TEFLON, PFA |
| Max. medium temperature: | 100℃ / 120℃(PFA) |
| Drive type: | Electric motor |
| Drive power: | 0.75 - 45KW |
| Flow rate: | 2.5 - 100m3/h |
| Max. Head: | 80m |
| Caliber: | 25 - 100mm |
| Caliber connection: | Flange |
| Seal: | Mechanical seal |
| Motor specification: | 220/240/380/400/415/440v, 3phase, 50/60Hz, etc |
| Main application | Chemical, strong acid/alkali, oxidant, etc |
| Customized service | Anti acid seal, anti alkali seal, special seal |
| Model | Speed | Capacity | Head | Eff. | Power(KW) | NPSH(r) | ||
| (r/min) | (m3/h) | (L/s) | (m) | (%) | Shaft | Motor | (m) | |
| IHF32-25-125 | 2900 | 5 | 1.39 | 20 | 44 | 0.62 | 1.5 | 2.3 |
| 1450 | 2.5 | 0.69 | 5 | 40 | 0.085 | 0.75 | 2.3 | |
| IHF32-25-125A | 2900 | 4.5 | 1.25 | 16 | 41 | 0.48 | 1.1 | 2.3 |
| IHF32-25-160 | 2900 | 5 | 1.39 | 32 | 40 | 1.1 | 2.2 | 2.3 |
| 1450 | 2.5 | 0.69 | 8 | 38 | 0.143 | 0.75 | 2.3 | |
| IHF32-25-160A | 2900 | 4.5 | 1.25 | 28 | 35 | 0.97 | 1.5 | 2.3 |
| IHF40-32-125 | 2900 | 6.5 | 1.8 | 20 | 45 | 0.79 | 2.2 | 2.5 |
| 1450 | 3.25 | 0.9 | 5 | 41 | 0.108 | 0.75 | 2.5 | |
| IHF40-32-125A | 2900 | 5.6 | 1.56 | 16 | 42 | 0.58 | 1.5 | 2.5 |
| IHF40-32-160 | 2900 | 6.5 | 1.8 | 32 | 40 | 1.42 | 2.2 | 2.5 |
| 1450 | 2.5 | 0.9 | 8 | 36 | 0.15 | 0.75 | 2.5 | |
| IHF40-32-160A | 2900 | 5.6 | 1.56 | 28 | 38 | 1.23 | 1.5 | 2.5 |
| IHF50-32-125 | 2900 | 12.5 | 1.56 | 20 | 54 | 1.26 | 2.2 | 3 |
| 1450 | 6.25 | 1.74 | 5 | 46 | 0.18 | 0.75 | 3 | |
| IHF50-32-125A | 2900 | 11 | 3.05 | 16 | 52 | 0.92 | 1.5 | 3 |
| IHF50-32-160 | 2900 | 12.5 | 3.47 | 32 | 48 | 2.27 | 4 | 3 |
| 1450 | 6.25 | 1.74 | 8 | 41 | 0.33 | 0.75 | 3 | |
| IHF50-32-160A | 2900 | 11.7 | 3.25 | 28 | 47 | 1.88 | 3 | 3 |
| IHF50-32-200 | 2900 | 12.5 | 3.47 | 50 | 42 | 4.1 | 7.5 | 3 |
| 1450 | 6.25 | 1.74 | 12.5 | 33 | 0.65 | 1.5 | 3 | |
| IHF50-32-200A | 2900 | 11.7 | 3.25 | 44 | 40 | 3.5 | 5.5 | 3 |
| IHF50-32-250 | 2900 | 12.5 | 3.47 | 80 | 35 | 7.8 | 11 | 3 |
| 1450 | 6.25 | 1.74 | 20 | 27 | 1.26 | 2.2 | 3 | |
| IHF50-32-250A | 2900 | 11.7 | 3.25 | 70 | 34 | 6.56 | 7.5 | 3 |
| IHF65-50-125 | 2900 | 25 | 6.94 | 20 | 64 | 2.13 | 3 | 3.5 |
| 1450 | 12.5 | 3.47 | 5 | 57 | 0.3 | 0.75 | 3.5 | |
| IHF65-50-1125A | 2900 | 22.3 | 6.19 | 16 | 62 | 1.57 | 2.2 | 3.5 |
| IHF65-50-160 | 2900 | 25 | 6.94 | 32 | 59 | 3.69 | 5.5 | 3.5 |
| 1450 | 12.5 | 3.47 | 8 | 53 | 0.51 | 1.1 | 3.5 | |
| IHF65-50-160A | 2900 | 23.3 | 6.5 | 28 | 58 | 3.1 | 4 | 3.5 |
| IHF65-40-200 | 2900 | 25 | 6.94 | 50 | 54 | 6.3 | 11 | 3.5 |
| 1450 | 12.5 | 3.47 | 12.5 | 46 | 0.93 | 1.5 | 3.5 | |
| IHF65-40-200A | 2900 | 23.3 | 6.5 | 44 | 53 | 5 | 7.5 | 3.5 |
| IHF65-40-250 | 2900 | 25 | 6.94 | 80 | 50 | 10.9 | 18.5 | 3.5 |
| 1450 | 12.5 | 3.47 | 20 | 42 | 1.62 | 3 | 3.5 | |
| IHF65-40-250A | 2900 | 23.3 | 6.5 | 70 | 48 | 9.3 | 15 | 3.5 |
| IHF80-65-125 | 2900 | 50 | 13.9 | 20 | 69 | 3.95 | 5.5 | 4 |
| 1450 | 25 | 6.9 | 5 | 64 | 0.53 | 1.1 | 4 | |
| IHF80-65-125A | 2900 | 45 | 12.5 | 16 | 68 | 2.88 | 4 | 4 |
| IHF80-65-160 | 2900 | 50 | 13.9 | 32 | 68 | 6.41 | 11 | 4 |
| IHF80-65-160 | 1450 | 25 | 6.9 | 8 | 62 | 0.88 | 1.5 | 4 |
| IHF80-65-160A | 2900 | 45 | 12.5 | 28 | 67 | 5.12 | 7.5 | 4 |
| IHF80-50-200 | 2900 | 50 | 13.9 | 50 | 64 | 10.64 | 15 | 4 |
| 1450 | 25 | 6.9 | 12.5 | 59 | 1.44 | 3 | 4 | |
| IHF80-50-200A | 2900 | 45 | 12.5 | 44 | 63 | 8.56 | 11 | 4 |
| IHF80-50-250 | 2900 | 50 | 13.9 | 80 | 50 | 21.8 | 30 | 4 |
| 1450 | 25 | 6.9 | 20 | 50 | 2.7 | 4 | 4 | |
| IHF80-50-250A | 2900 | 45 | 12.5 | 70 | 50 | 17.6 | 22 | 4 |
| IHF100-80-125 | 2900 | 100 | 27.8 | 20 | 75 | 7.26 | 11 | 5 |
| 1450 | 50 | 13.9 | 5 | 70 | 0.97 | 1.5 | 4.5 | |
| IHF100-80-125A | 2900 | 89 | 24.7 | 16 | 73 | 5.3 | 7.5 | 5 |
| IHF100-80-160 | 2900 | 100 | 27.8 | 32 | 74 | 11.78 | 15 | 5 |
| 1450 | 50 | 13.9 | 8 | 68 | 1.6 | 2.2 | 4.5 | |
| IHF100-80-160A | 2900 | 93.5 | 26 | 28 | 73 | 9.3 | 11 | 5 |
| IHF100-65-200 | 2900 | 100 | 27.8 | 50 | 72 | 18.91 | 360 | 5 |
| 1450 | 50 | 13.9 | 12.5 | 68 | 2.5 | 4 | 4.5 | |
| IHF100-65-200A | 2900 | 93.5 | 26 | 44 | 71 | 15.02 | 22 | 5 |
| IHF100-65-250 | 2900 | 100 | 27.8 | 80 | 69 | 31.6 | 45 | 4 |
| 1450 | 50 | 13.9 | 20 | 63 | 4.3 | 5.5 | 4.5 | |
| IHF100-65-250A | 2900 | 93.5 | 26 | 70 | 68 | 26.2 | 37 | 4.5 |
